• Linkwitz-Riley filters with 24 dB/octave slope; flat summed amplitude response, zero phase difference
• Low/Mid Crossover frequencies adjustable in two switchable ranges: 44 to 930 Hz and 440 Hz to 9.3 kHz
• Mid/High frequencies adjustable 440 Hz to 9.3 kHz
• Adjustable time delay for phase alignment between drivers
• “LF Sum” function for mono subwoofer operation
• Individual Limiters on every output
• Individual output mute switches for all bands
• Individual phase reverse switches for all bands
• CD horn equalization
• Switchable 25 Hz low cut filter in each input
• Balanced XLR In/Outs
• All switches with LED status

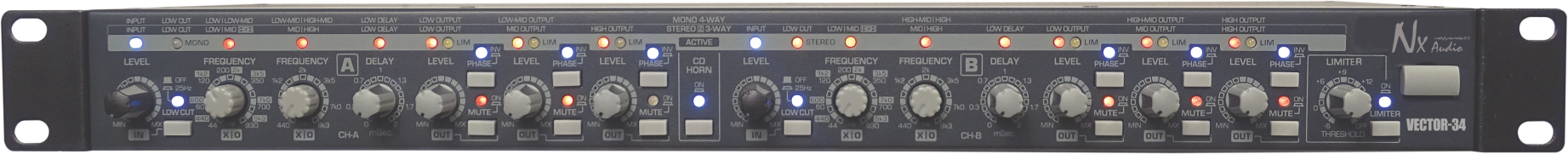

Vector 34 and its series are designed for better sound and provide superb high-precision audio frequency separation using state-of-the-art circuitry, superior-grade components, low-noise op amps and balanced I/O connectivity. Vector Analog Crossovers can be configured in Stereo and Mono models with a flip of the rear side switch with features like Limiters on all crossover outputs for optimal loudspeaker protection; an adjustable Time Delay for proper phase-alignment of the drivers; High-Frequency (HF) horn equalization for constant-directivity compensation; and a mono “Low Sum” Output (stereo modes only), which is ideal for your subwoofer applications. Compared to digital loudspeaker management systems, Vector X-overs are not only more affordable, but also offer greater ease-of-use and a full 20dB signal headroom that only an analog processor can provide
