- Input Connectors - 1/4" TRS, female XLR (pin 2 hot)
- Input Type - Electronically balanced/unbalanced, RF filtered
- Input Impedance - Balanced 40k ohm, unbalanced 20k ohm
- Max Input - >+21dBu balanced or unbalanced
- CMRR - >40dB, typically >55dB at 1kHz
- Output Connectors - 1/4" TRS, male XLR (pin 2 hot)
- Output Type - Impedance-balanced/unbalanced, RF filtered
- Output Impedance - Balanced 100 ohm, unbalanced 50 ohm
- Max Output - >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth - 20Hz to 20kHz, +0.5/-1dB
- Frequency Response - <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range - Typically >112dB
- Signal to Noise Ratio - Typically >95dB
- THD+Noise - <0.003%
- Interchannel Crosstalk - <-90dB, 20Hz to 20kHz
- Bypass Switch - Bypasses the graphic equalizer section in the signal path
- Low cut Switch - Activates the 50Hz 12dB/octave high-pass filter
- Range Switch - Selects either +/- 6dB or +/-12dB slider boost/cut range
- Home Theatre Systems / Club Sound Experience at Home
- Restaurants / Cafe / Gym " Sound System Set Up "
- DJ Gear
- Live Sound
- Lighting
- Commercial
- Studio
- Accessories
- Education Institution
- 100% Original Product Guarantee from DJ Pundits.
- COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
- Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
- The products you buy are sourced carefully for you at the lowest price
- Dual 31-band, 1/3-octave Constant Q frequency bands
- Switchable boost/cut ranges of ±6 or ±12 dB
- Front panel bypass switch
- ±12 dB input gain range
- 4-segment LED ladders for monitoring output levels
- XLR and TRS Inpts and Outputs
- Frequency Response of <10Hz to >50kHz
- Dynamic range of greater than 108dB

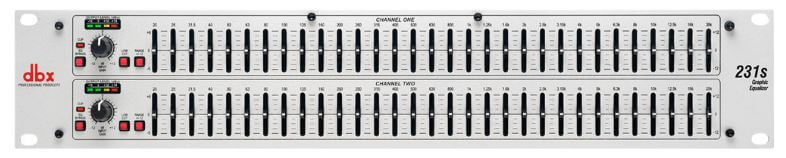

DBX 231S DUAL CHANNEL 31-BAND GRAPHIC EQUALIZER
Description: Exceptional sound and rugged reliability.
Warranty : 1 Year
Offer Price : 12,000.00
