• Maximum Output Power : 500 W
• Audio Input : 2 x 3-pin servo balanced XLR
• Sensitivity : +4 dBu at 0 dB (center position) for full rated power
• Input Impedance : 12 kΩ unbalanced; 24 kΩ balanced
• Audio Output Thru A/B : servo-balanced XLR
• Audio  Output A/B : servo-balanced XLR
• Impedance : 300 Ω unbalanced; 600 Ω balanced
• High-Pass Filter : 100 Hz, butterworth with 18 dB slope
• Controls Level : -∞ to +6 dB
• Controls Boost (Switchable) : 40 to 90 Hz, +10 dB
• Controls Cut (Switchable) : 70 to 150 Hz, Butterworth, 24 dB slope
• System Frequency Range : 45 to 180 Hz (-10 dB)
• Frequency Response : 60 to 130 Hz (± 3 dB)
• Signal-to-Noise Ratio : >100 dB
• SPL : Maximum 122 dB at 1 m
• Woofer : 12" (307 mm) at 8 Ω
• Limiter : Optical
• Indicator Signal : Green
• Indicator Limiter : Red
• Indicator Power : Amber
• Protection Amplifier : Full short circuit, open circuit, thermal protection
• Protection  Load : Turn-on/off muting
• Weight : 43.1 lb (19.5 kg)

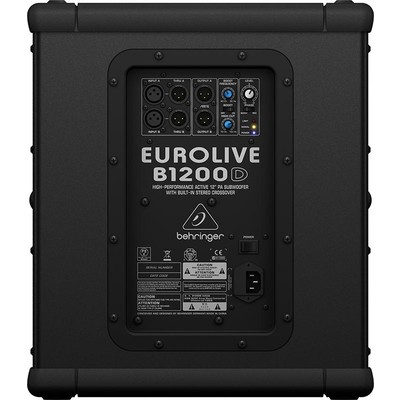

Powerful, high-efficiency Class-D amplifiers and Switch Mode Power Supply technology coupled with state-of-the-art DSP functionality sure sounds impressive but what about the part of the system you actually hear? Our LF transducers are designed specifically for each application  it's what sets us apart from the competition. When you buy a BEHRINGER active subwoofer, you can rest assured that the transducer inside has been engineered to perform flawlessly with every other element for truly professional results. The B1200D-PRO active subwoofer is capable of extremely high sound pressure levels: 122 dB (Full Space, 1 W @ 1 m), with a frequency range of 45 - 180 Hz. The B1200D-PRO features balanced XLR inputs and outputs, as well as balanced XLR Thru jacks for connecting additional enclosures. A Boost Frequency knob targets a boost frequency between 45 Hz and 90 Hz. Flick the Boost switch to give your selected frequency a +10 dB boost. The B1200DPRO also has a High Cut dial that provides precision control over the upper-corner frequency of the subwoofer's amplifier. The High Cut dial does not affect the Thru signals, only signals directed to the subwoofer (however, it does affect the Output socket signals sent out to full-range speakers). A Level knob controls the input gain, and the Phase switch reverses output phase to compensate for frequency cancellation between the subwoofer and satellite speakers. LEDs show operational status at a glance, including power, signal present and input overloads.
