Frequency range : 548-572 MHz
614–638 MHz
766-790 MHz
794-804 MHz
821-832 / 863-865 MHz
606-630 MHz
925-937.5 MHz
-

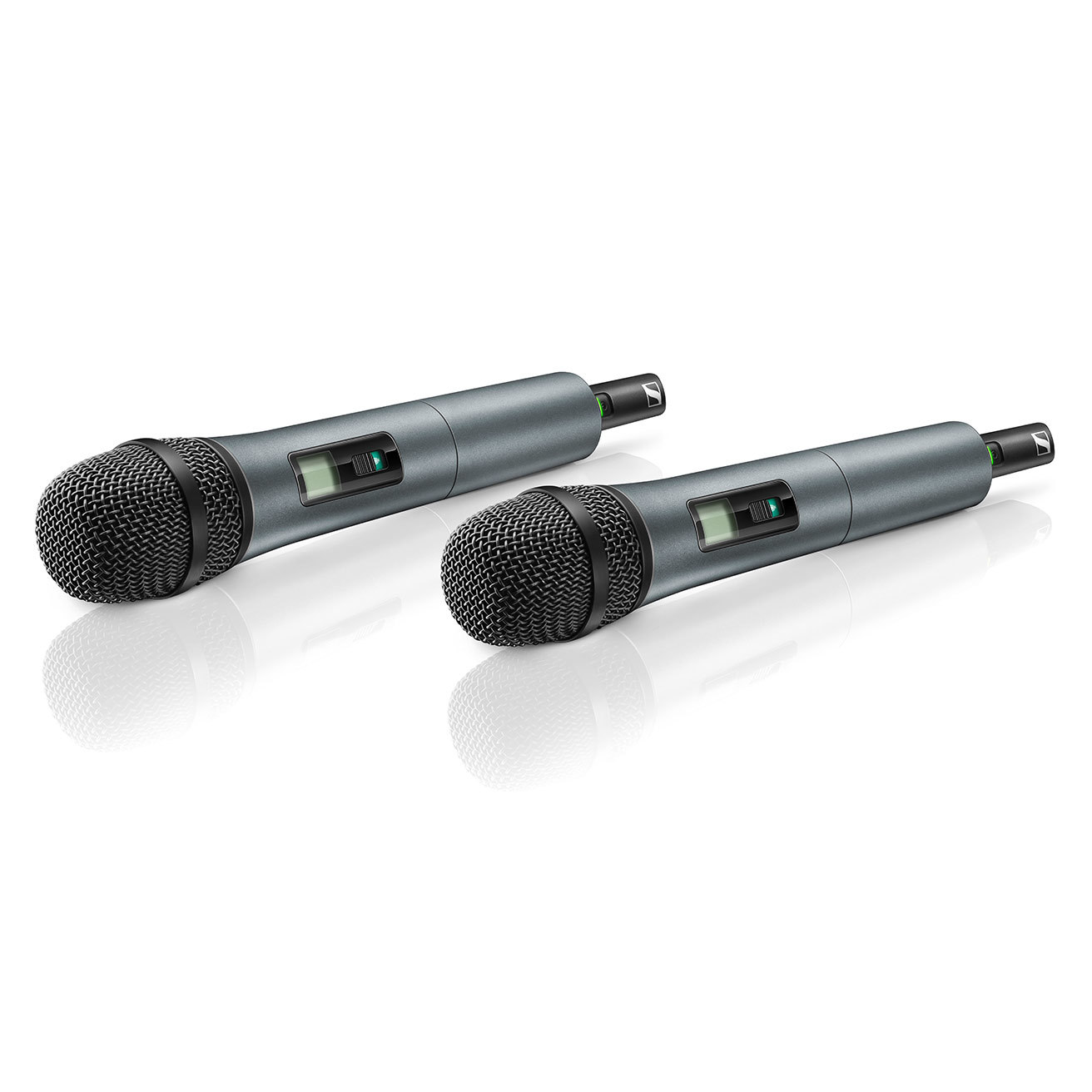

Dimensions : Ø 48 x L 180 mm
-
Connector : XLR-3
-
Frequency response : 55 - 16,000 Hz
-
THD, total harmonic distortion : ≤ 0.9%
-
Transducer principle : dynamic
-
Weight : 330 g (0.73 lbs)
-
Pick-up pattern : cardioid
-
Nominal impedance : 300 Ω (at 1 kHz)
-
Min. terminating impedance : 1 kΩ
-
Storage temperature : –20°C to +70°C
-
Operating temperature : 0°C to +40°C
-
Signal-to-noise ratio : ≥ 103 dBA
-
Switching bandwidth : Up to 24 MHz
-
Modulation : Wideband FM
-
Frequency : 80 factory presets (8 banks of 10 channels each)
-
Sensitivity : 1.8 mV/Pa (free field, no load at 1 kHz)
-
Synchronization : Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
-
Temperature Range : 0 °C ... +40 °C (+32 °F ... +104 °F)
-
Frequency range : 548-572 MHz
-
Frequency response : 766-790 MHz
-
794-804 MHz
821-832 / 863-865 MHz
925-937.5 MHz
-

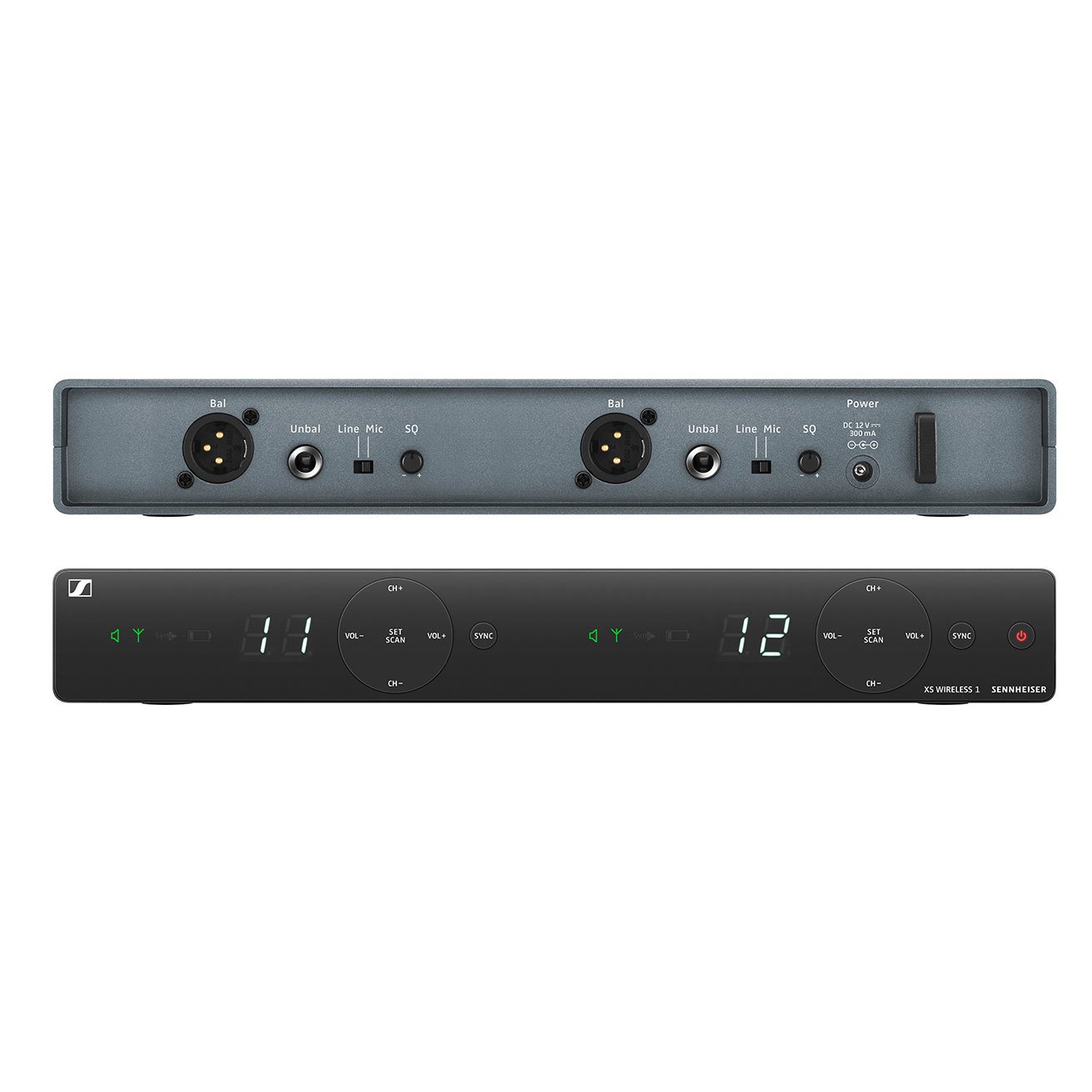

Power supply :12 V DC nom. / 300 mA
-
Output voltage : (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
Housing : Rugged ABS housing
Sensitivity : < 3 μV at 52 dB(A) rms S/N (at peak deviation)
Squelch : Adjustable from 3 dBμV to 28 dBμV
AF frequency response : 50 to 16,000 Hz (–3 dB)
Audio adjustment range : 45 dB, adjustable in 5 dB steps
Line / Mic level : 20 dB, switchable
Receiver Principle : Double superheterodyne
Diversity principle : Antenna switching diversity via internal antennas
