• Power Output - 2 Ω per channel, stereo: 2 x 6000 W; 4 Ω per channel, stereo: 2 x 3400 W;8 Ω per channel, stereo: 2 x 1700 W
• Front - Power switch gain controls (channels A and B)

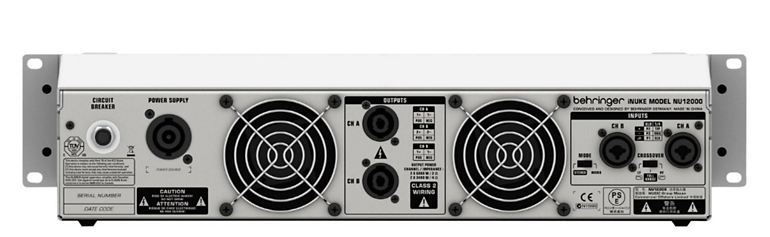

• Rear - Mode switch (stereo/mono); Crossover switch (LF/full-range/HF); Circuit breaker
• Indicator Power - Amber backlit illuminated gain controls
• Limiter - Per channel: 0 dB, full scale
• Signal - Per channel: -24, -12, -6 dB
• RMS Voltage Swing - 8 Ω: 0.75 V (-0.3 dBu)
• Input Connectors - 2 x combo jacks
• Input Impedance - 10 kΩ unbalanced; 20 kΩ balanced
• Outputs - 2 x locking-style professional speaker connectors
• Circuit Type - Class-D
• Distortion - <0.2 %
• Frequency Response - 20 to 20,000 Hz, +0/-2 dB
• Damping Factor - >100 at 8Ω
• Signal-to-noise - >100 dB
• Circuit Protection - Cooling: continuously variable speed fan, back-to-front air flow;
• Amplifier protection - thermal and DC protection, stable into reactive or mismatched loads
• Load protection - on/off muting, DC-fault power supply shutdown
• Connector Mains - Neutrik powerCON 32 A
