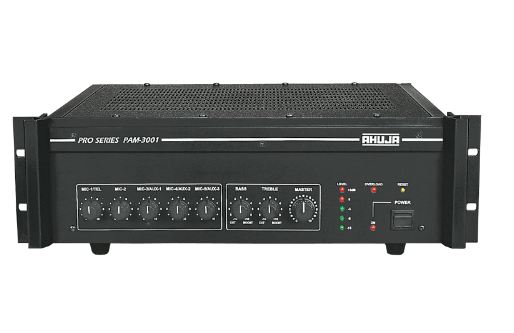

Ahuja PAM-3001 PA Mixer Installation Amplifier

Description: 325W RMS at 10% THD

Warranty : 1 year

Offer Price : 17,030.00

100% Original Product Guarantee from DJ Pundits.
COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
The products you buy are sourced carefully for you at the lowest price

Tags : PAM3001 Installation Amplifier pam series

5 Mic, 3 Aux & 1 Telephone Inputs.
2 Balanced Mic Inputs through Combo (Female XLR socket cum ¼” Stereo Phone Jack) connectors.
Mic-1 and Telephone Input provided with Voice Operated Priority over all other programmes.
Preamplifier and Line Output for recording the programme and connecting to a booster amplifier.
Line Input for connecting an external audio mixer or permitting PAM-3001 to be used as a Booster Power Amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
19” Rack mountable.

Power Output : 415W Max., 325W RMS at 10% THD, 300W RMS at 5% THD, 275W RMS at 2% THD
Output Regulation : ≤ 2 dB, no load to full load at 1kHz
Input Channels : 3 × Mic 0.65mV/4.7kΩ, 2 × Mic 1.0mV/2kΩ, 1 × Line 1V/50kΩ, 2 × Aux 100mV/470kΩ, 1 × Aux 250mV/470kΩ, 1 × Telephone 150mV/10kΩ
Frequency Response : 50-15,000Hz ±3dB
Signal to Noise Ratio : 60dB
Tone Controls : Bass- ±10dB at 100Hz, Treble- ±10dB at 10kHz
Outputs : Preamp 200mV/600Ω, Line 1V/1kΩ, Monitor 5V/8Ω
Speaker Outputs : 4Ω, 8Ω, 70V & 100V
Power Supply : AC- 220-240V 50/60Hz; DC- 24V (2×12V Car Battery)
Power Consumption : AC- 600VA; DC- 7A
Dimensions : W482 × H133 × D390 mm
Weight : 19.8kg
