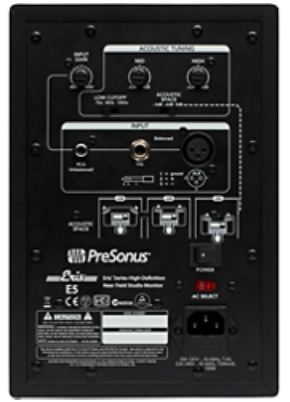

Inputs
- 1- Balanced XLR
- 1- Balanced ¼" TRS
- 1- Unbalanced RCA
Performance
- Frequency Response 53 Hz - 22 kHz
- Crossover Frequency 3 kHz
- LF Amplifier Power 45W
- HF Amplifier Power 35W
- Peak SPL (@ 1 meter) 102 dB
- LF Driver 5.25" Kevlar
- HF Driver 1" silk dome
- Input Impedance 10 kÎ
User Controls
- Volume Range A-type taper
- MF Control -6, 0, +6 dB
- HF Control -6, 0, +6 dB
- Low Cut Flat, 80 Hz, 100 Hz
- Acoustic Space Flat, -2 dB, -4 dB
Protection
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- External mains fuse
Power
- 100-120V 50/60 Hz or 220-240V 50/60 Hz
Cabinet
- Vinyl-laminated, medium-density fiberboard
