PHONIC PAA3X AUDIO ANALYZER

Description: Phonic PAA3X Handheld Audio Analyzer from Phonic is a sound analysis tool for use in checking your audio equipment both in the studio and on location.

Phonic PAA3X

Offer Price : 79,500.00
  • 100% Original Product Guarantee from DJ Pundits.
  • COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
  • Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
  • The products you buy are sourced carefully for you at the lowest price
Tags : Phonic PAA3X Audio Analyzer phonic paa3x audio analyzer Phonic PAA 3 X

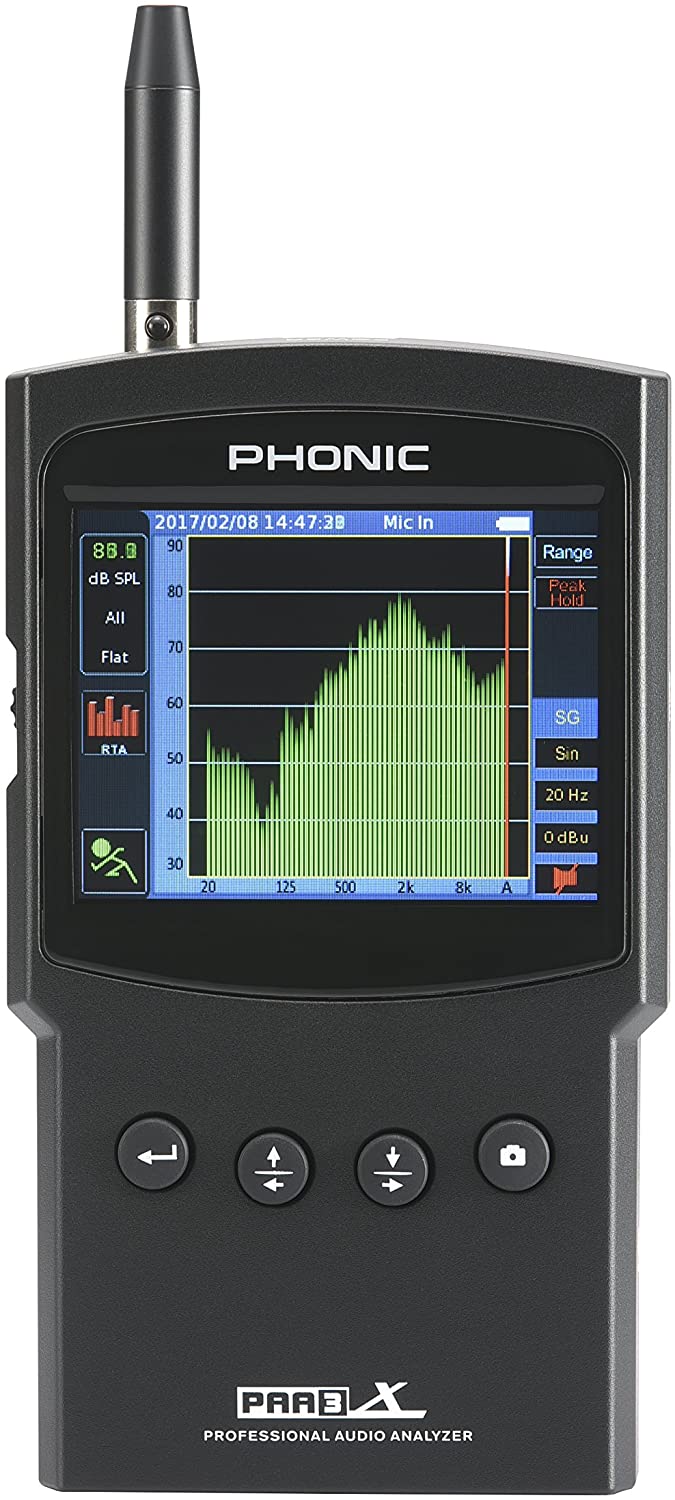

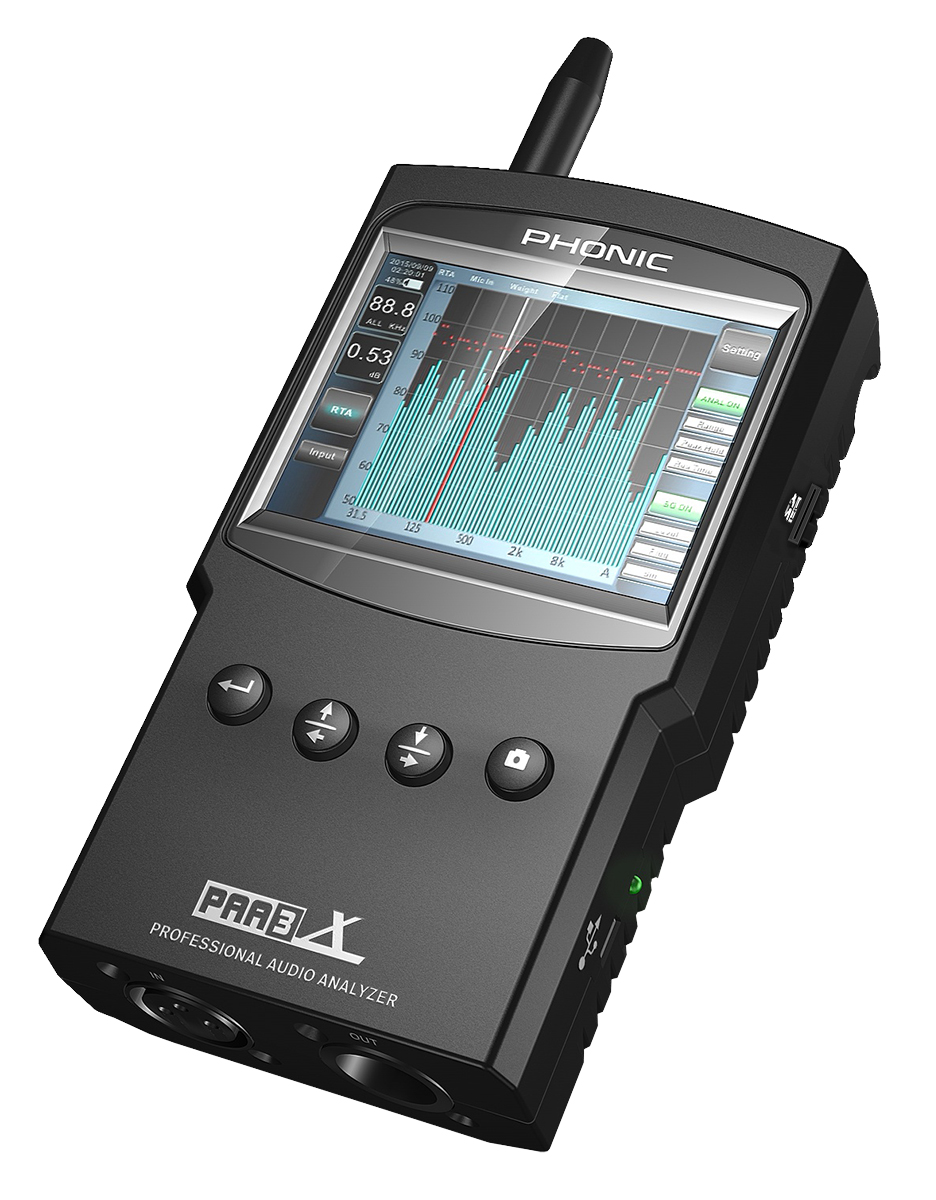

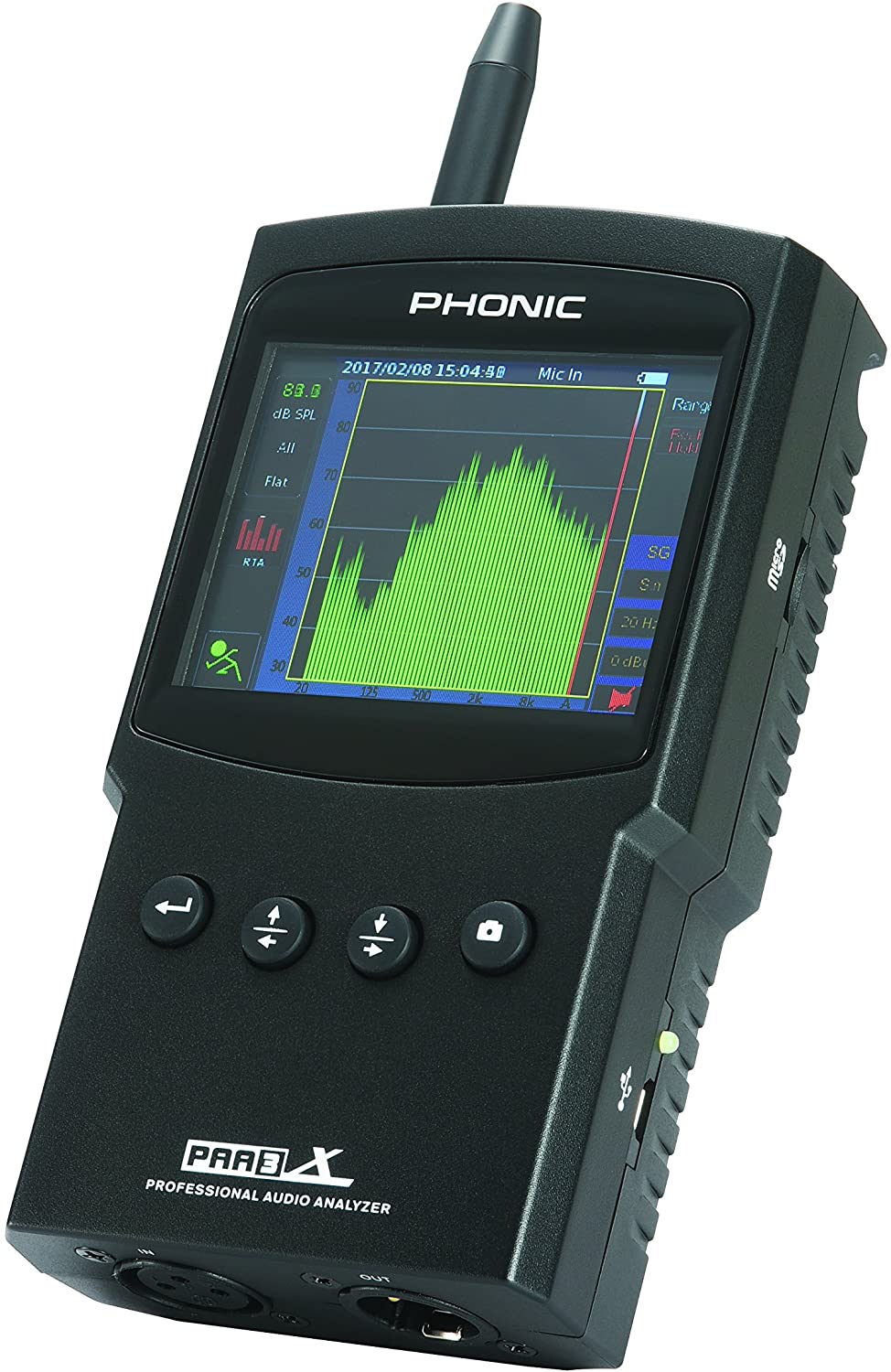

The Phonic PAA3X Handheld Audio Analyzer from Phonic is a sound analysis tool for use in checking your audio equipment both in the studio and on location.

It provides an array of sound analysis tools, such as a 31-band and 61-band real-time spectrum analysis, an RT60, SPL and line meter, and other features such as internal generator, EQ setting program, microphone calibration, and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. You can upload information and settings to your computer via the built-in USB interface. A microphone for measurements, a mic extension cable, a microSD card, and an AC adapter with USB cable are included.

  • 31-band and 61-band real-time spectrum analyzer and EQ setting value display (Boost/Cut)
  • Polarity checker
  • Signal generator with pink noise, sin wave and polarity test signal, and balanced output
  • Memory and average calculation function
  • SPL meter calibration through sound level calibrator
  • Sound pressure level meter from -30 to 130 dB
  • Line signal measurement display in dBu, dBV, or volts (AC)
  • SPL meter and level meter have three level range selections
  • Maximum level, peak hold displays
  • XLR input and output sockets
  • Micro USB port
  • Rechargeable lithium battery
  • AC power adapter included



Phonic PAA3X Specs

Microphone Detachable Miniature Omnidirectional Condenser Microphone
Line XLR Jacks for Line Input and Output
Data Port Micro USB
Display 320 x 240 RGB LCD
Voltage Bar Graph and Digit Display
RTA 31- / 61-Band, 0.5 dB Resolution Center Frequencies ISO Standard from 20 Hz to 20 kHz
Measurement Range SPL (Microphone Input): 30 to 130 dB SPL
dBu (Line Input): -50 to +40 dBu
dBV (Line Input): -52 to +38 dBV
Voltage (Line Input): 5 mV to 80 V
Weighting A, C, or Flat
Display Maximum Level Display: RESET
Response Time 35, 125, and 250 ms; 1 Second
Functions Reverberation Time Display, up to 30 Seconds
Memory Internal Memory/Micro SD Storage Device
Equalizer Display: 31-/61-Band
Polarity Checker: Through Polarity Signal
Transmission Simultaneous Operation with PC or Laptop Through USB Port
Noise Generator Based on 6 VDC Power Source:
Pink Noise: Balanced Output
Sin Signal: Balanced Output
Polarity Signal: Balanced Output
Power Source Rechargeable Lithium Battery
Dimensions (H x W x D) 6.1 x 3.5 x 1.5" / 16 x 9 x 3.8 cm
Weight 325 grams
