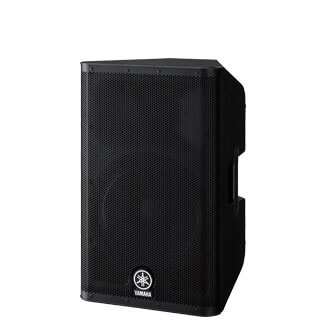

• Speaker type : 12" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB) : 52Hz - 20kHz
• Nominal coverage : H-90°; V-60°
• Components : LF-Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite; HF-Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover : FIR-X tuning™ (linear phase FIR filter)
• Output power : Dynamic-1100W (LF: 950W HF: 150W) / Continuous- 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis) : 132dB SPL
• I/O connectors : INPUT- XLR-3-31 x1 , INPUT2- Phone x2, INPUT3- RCA PIN x 2, THRU- XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT- XLR x 1
• Processors : D-CONTOUR- FOH/MAIN, MONITOR, OFF
• Power requirements : 100V - 240V, 50Hz/60 Hz
• Power consumption : 110W
• Flying and mounting hardware : Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
• Pole socket : 35mm with 2-way features (0 or 7 degrees)

Extensive DSP Protection Functions for maximum output,.. the DXR SERIES Speakers come with a three input mixer section, which accommodates one mono mic - line input and two stereo line inputs,... mix output can send either a mono sum of all the inputs, or a mix of the mic - line input and the right half only of the stereo line signals,... Extremely compact clean sounding, they are great for music playback and vocal as well, with the DXR15 also being easily capable of handling full band / PA work as well,...

The way the rear of the DXR cabinets is angled it allows the speakers to be used as floor monitors as well if required.

Ultra Precise 48 bit DSP Processing for HighDefinition Sound
Intelligent Dynamic Control for Consistent Clarity at Any Output Level
A High Efficiency 1100W Class D Amplifier,  Universal Switching-Mode Power Supply, Onboard 3 Channel Mixer, Mic and Line Level Input Capability, with Mixing - Linking Function, a custom designed DXR Transducers.
