- Type: 2-way, Bi-amp powered speaker, Bass-reflex type:
- Frequency range (-10dB): 55Hz - 20kHz
- Nominal coverage, H: 90, V: 60
- Components: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
- HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
- Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- Maximum output level (1m; on axis): 131dB SPL

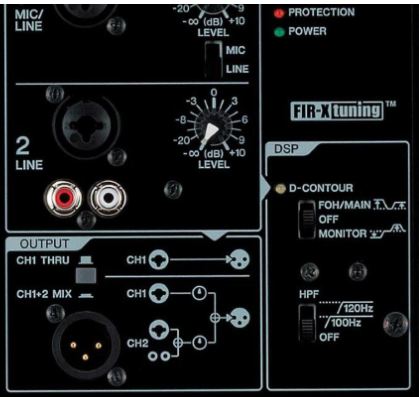

- I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipation: Fan cooling, 4 speeds
- Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
- Cabinet material: Plastic
- Finish: Black
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket: 35mm (Bottom x 1)
- Home Theatre Systems / Club Sound Experience at Home
- Restaurants / Cafe / Gym " Sound System Set Up "
- DJ Gear
- Live Sound
- Lighting
- Commercial
- Studio
- Accessories
- Education Institution
- 100% Original Product Guarantee from DJ Pundits.
- COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
- Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
- The products you buy are sourced carefully for you at the lowest price
- Active/passive: Active
- Type: Two-way full range
- LF driver: 10"
- MF driver: N/A
- HF driver: 1.4" ferrite driver
- Amplifier class: D
- Wattage: 325W RMS, 700W peak
- Mixer/preamp: 2 Channel
- Frequency response: 55Hz - 20kHz
- Coverage pattern: 90 x 60
- Max SPL: 131 dB
- XLR : 2 XLR/TRS
- TRS
- TS
- RCA
- XLR : 1 mix output
- TRS
- TS
- RCA
- SPEAKON

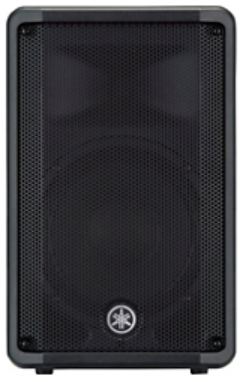

YAMAHA DBR10 (PAIR) 10" 2-WAY POWERED SPEAKER
Description: The most portable powered loudspeakers Yamaha has to offer.
Warranty : 1 Year
Offer Price : 82,000.00
WE ACCEPT THE FOLLOWING
Speaker configuration
Power
Audio
Inputs
Output/thru
