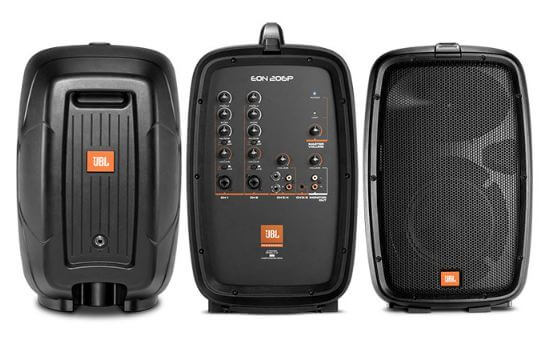

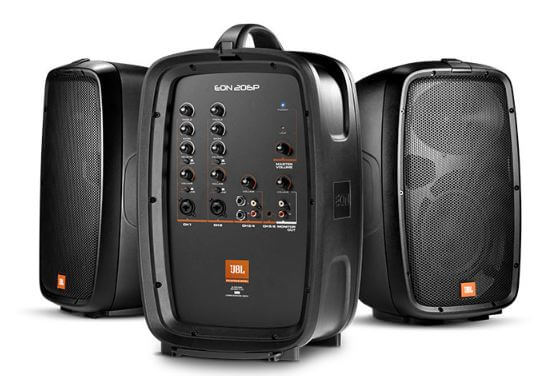

SPEAKERS:-
System Type: 2 Self powered 6.5”, two-way, bass-reflex
Max SPL Output: 113 dB
Frequency Range (-10dB): 64Hz – 22kHz
Frequency Response (-3dB): 77Hz – 20kHz
Coverage Pattern: 100° x 80°
Amplifier Design: Class D
Power Rating: 160 W (2 X 80W)

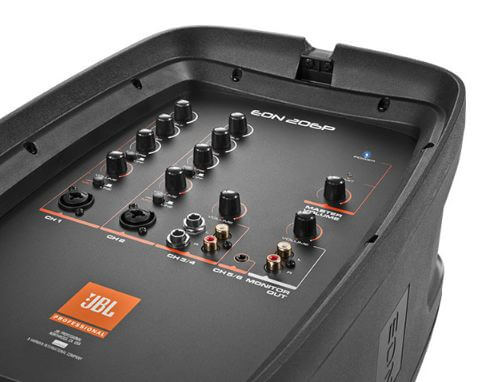

POWERED MIXER:-
Input Connectors: 6 inputs (2 Mono Mic/Line, 2 x Stereo)
Channels: 1-2 are XLR / 1/4” jack combo connectors
XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
Input Impedance: Ch 1-2 Combo: XLR 40 K Ohms Balanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Output Connectors: Monitor outputs:
one pair of RCA jacks (stereo)
Signal Indicators: Limit:-Yellow LED indicates limiter active condition
EQ: Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter: On Board DSP Limiting and Tuning
