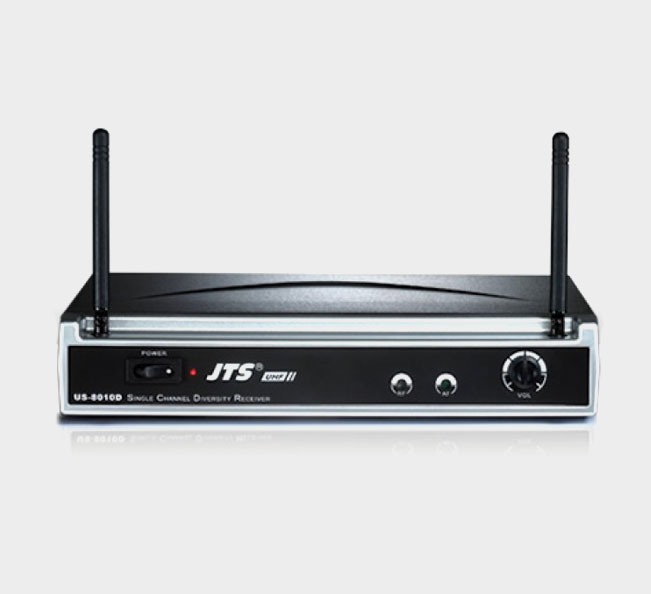

US-8010D
Frequency Preparation Crystal
Carrier Frequency Range 600~960 MHz
Frequency Stability ±10KHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna, RF/AF Status
Controls Power On/Off, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 150mA
Output Connector 1 XLR Balanced Socket
1 Unbalanced Ø6.3mm Phone Jack
Dimension(m/m) 210mm (W)* 40mm (H)* 171mm (D)

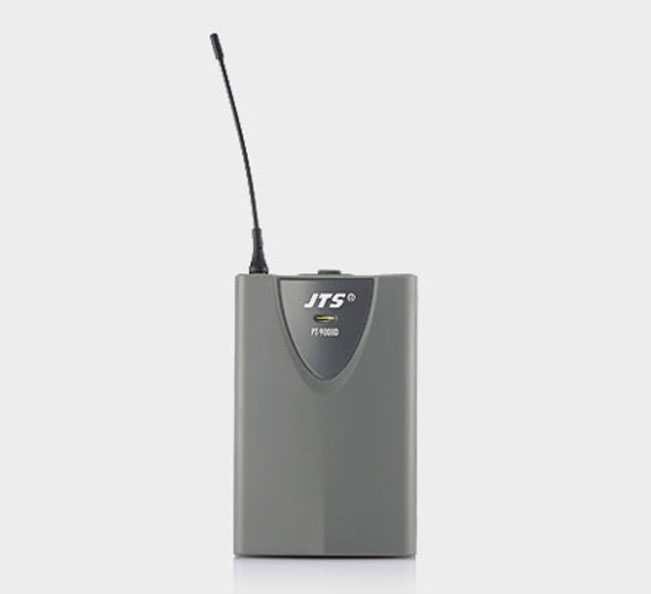

PT-900BD
Frequency Preparation Crystal
Carrier Frequency Range 600~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low Battery
Controls Power On/Off, AF Level
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery Um3, AA 1.5V*2

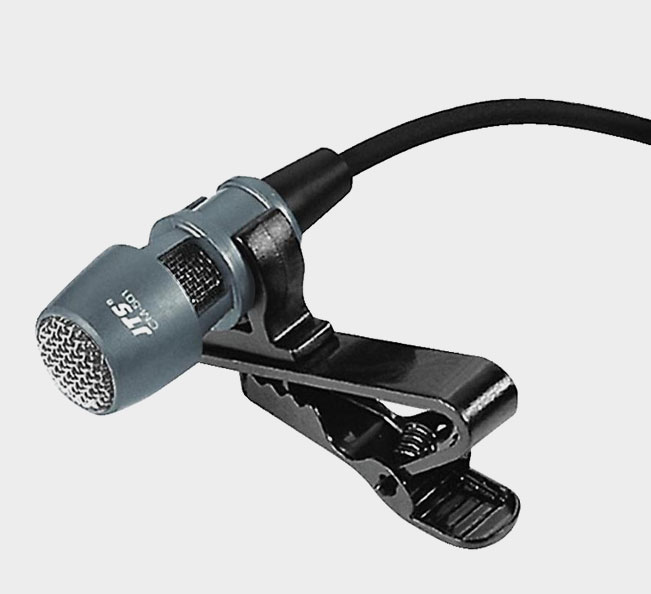

CM-501
Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension (mm) Ø10.1mm(W)* 26.4mm(H)
Net Weight 21.5g
