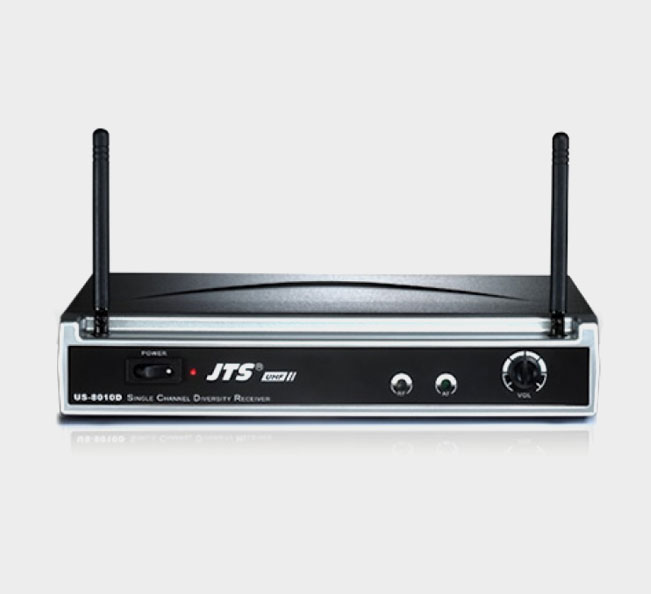

US-8010D
Frequency Preparation Crystal
Carrier Frequency Range 600~960 MHz
Frequency Stability ±10KHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna, RF/AF Status
Controls Power On/Off, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 150mA
Output Connector 1 XLR Balanced Socket
1 Unbalanced Ø6.3mm Phone Jack
Dimension(m/m) 210mm (W)* 40mm (H)* 171mm (D)

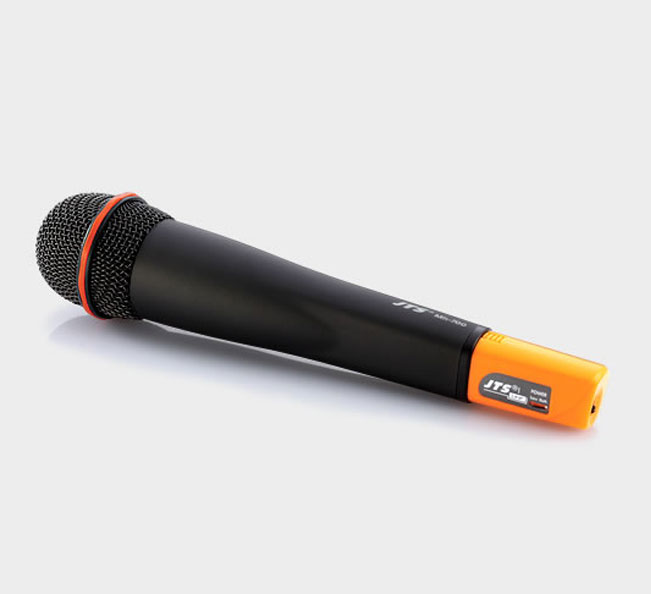

Mh-700
Frequency Preparation Crystal
Carrier Frequency Range 600~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Low Battery, Power On/Off
Controls Power On/Off
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery Um3, AA 1.5V*2
