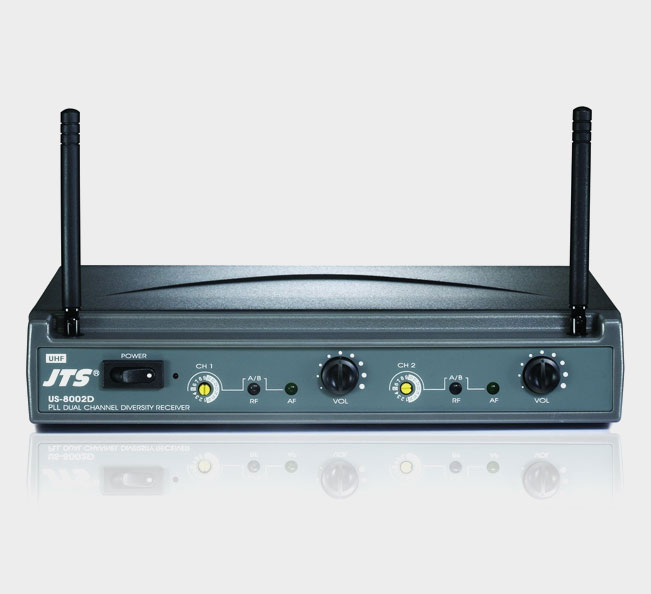

US-8002D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio > 105dB
T.H.D. <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 2 Balanced XLR socket
1 Unbalanced Ø6.3mm phone jack
Dimension (mm) 210mm (W)* 40mm (H)* 171mm (D)
PT-850B
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low Battery
Controls Power On / Off,Channel Up / Down
Output connector 4P mini XLR
Spurious Emissions <-60 dBC
Audio Frequency Response 50~16,000 Hz
Battery Um3, AA 1.5V*2

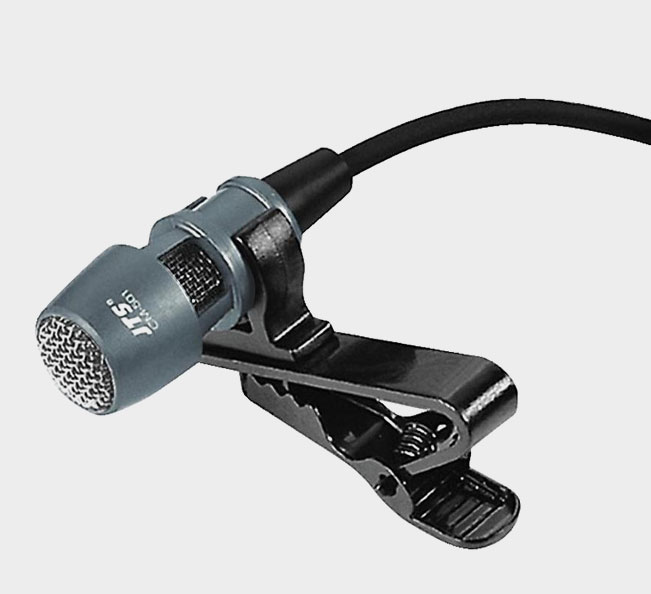

CM-501
Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/?bar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension (mm) Ø10.1mm(W)* 26.4mm(H)
Net Weight 21.5g
