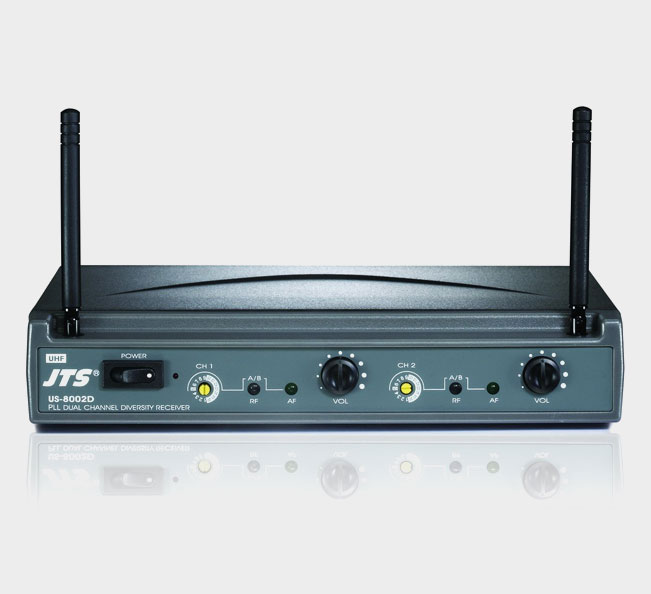

US-8002D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio > 105dB
T.H.D. <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 2 Balanced XLR socket
1 Unbalanced Ø6.3mm phone jack
Dimension (mm) 210mm (W)* 40mm (H)* 171mm (D)

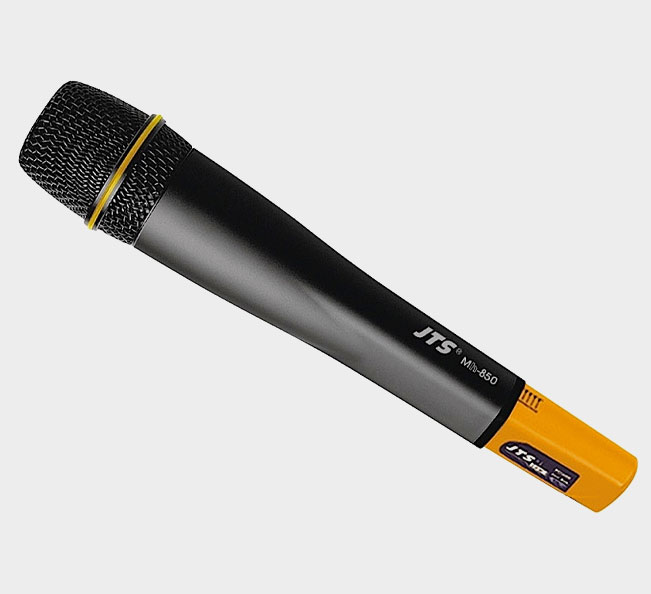

Mh-850
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs Maximum 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low battery
Controls Power On/Off, Channel Selecting
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
