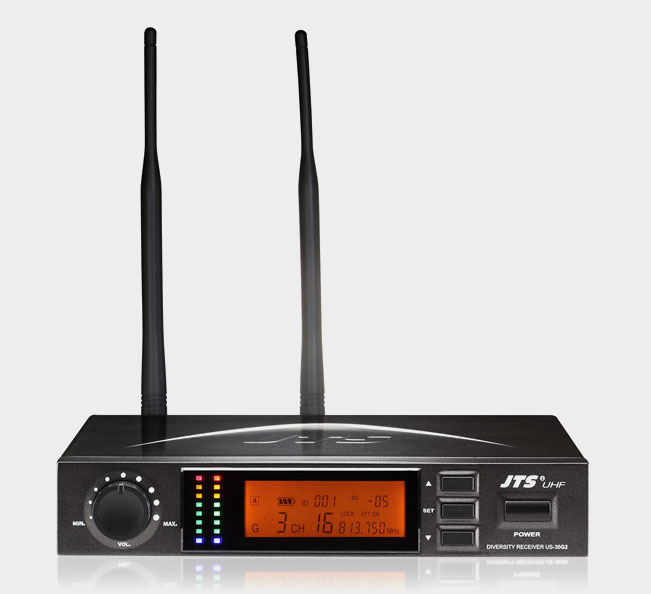

US-36G2
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio >105dB
T.H.D. <0.6%@1KHz
Display Contents Frequency, Antenna A/B, Mute Display, LED Meter , Battery Fuel Gaugez
Controls Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on
Audio Output Level -12dB
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 212.3mm(W) * 38.3mm(H) * 144mm(D)

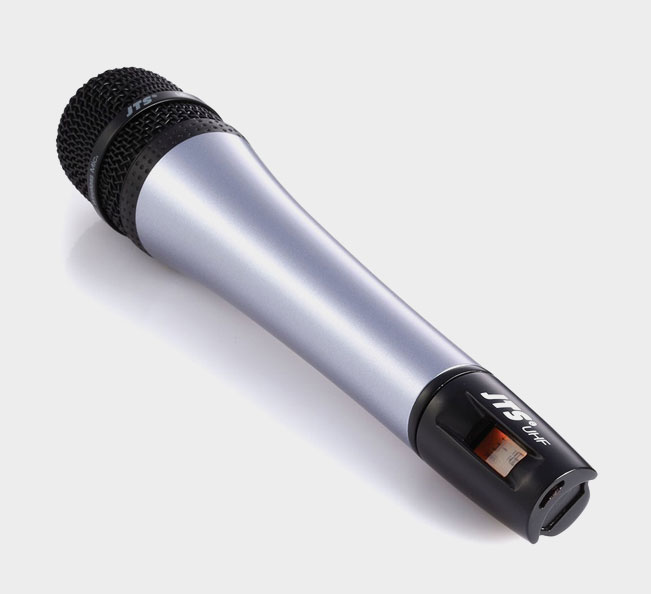

Mh-36G2
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Frequency, Battery Fuel Gauge, Sensitivity
Controls Power On/Off, Mode Setting, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
