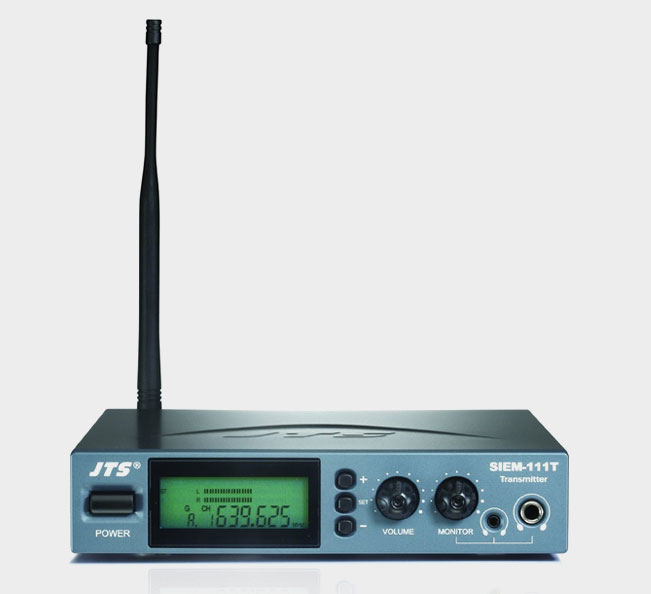

SIEM-111T
Carrier Frequency Range 502~960 MHz
RF Output Power 10 mW
Nominal Frequency Deviation (modulation) ±40KHz
Audio Input Impedance 20kΩ
Nominal Input Level -10 dBV ; 0 dBV (ATT-10 dBV)
Maximal Input Level 10 dBV ; 20 dBV (ATT-10 dBV)
LCD Display AF Level, Stereo/Mono, Attenuation Level, Group, Channel, Frequency
Audio Input Connector 2 x Balanced XLR /Ø6.3mm phone Combo Socket
Audio Output Connector 1 x 1/8” Stereo Phone Jack
1 x 1/4” Stereo Phone Jack
Loop Out Connector 2 x Balanced Loop Out Socket
Switching Power Supply 100-240V Switching power supply

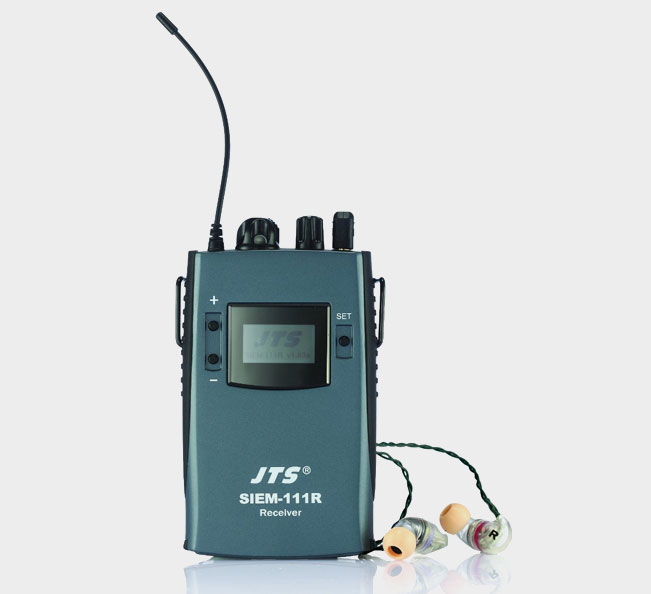

SIEM-111R
Input Level Select Switch 0dB / -10dB
Earphone Output 60 mW
Minimum Load Impedance 16Ω
LCD Display RF Level, Lock-On, Battery Fuel Gauge, Stereo/Mono, HF booster,
Dynamic Limiter, Group, Channel, Mute, Frequency
Output Connector 1/8” Stereo Phone Jack
Power Supply 2 AA batteries
Operation Hour Over 12 hours

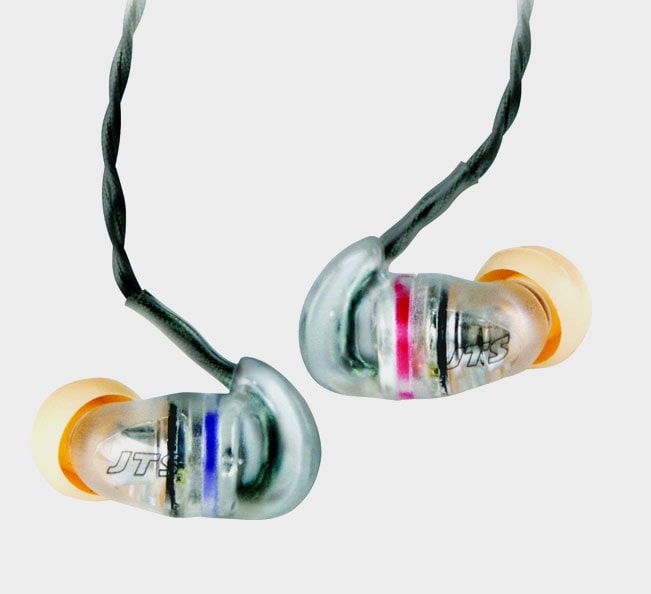

IE-1
Frequency Response 20~20,000 Hz
Transducer Type Dynamic
Impedance 16Ω
Sensitivity (at 1000Hz) 114 dB/mW
Distortion Less than 0.3%
Cord Length 148cm with Ø3.5 stereo plug
