• Power Rating : 1500W/Channel @ 8 Ohms Stereo | 3000W/Channel @ 4 Ohms Stereo
• Damping Factor : > 140 @ 8 Ohms
• Input Impedance : 10 kOhms Unbalanced | 20 kOhms Balanced
• Frequency Response : 20Hz - 20kHz +0/-2dB
• Signal-to-Noise Ratio : > 100dB
• Total Harmonic Distortion (THD) : < 0.2%

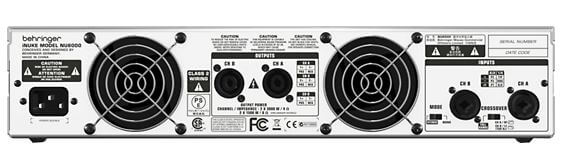

Connectors :

• 2 x XLR/TRS Combo Inputs
• 2 x Twist-Lock Speakon Outputs
• 1 x AC Power Input

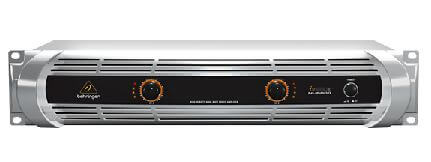

Controls:

• 1 x Power Switch
• 2 x Detented Gain Controls
• 1 x Crossover Switch (Full Range/100Hz)
• 1 x Mode Switch (Stereo/Mono)

Indicators:

• 2 x Red/Amber Power Indicators (Backlit Gain Controls)
• 1 x Limit LED per Channel (0dB, Full Scale)
• 3 x Signal LEDs per Channel (-24, -12, -6dB)
• Cooling : Continuously Variable Speed Fan, Back-to-Front Airflow

Protection:

• Thermal and DC Protection
• Stable into Reactive or Mismatched Loads
• On/Off Muting, DC Fault Power Supply Shut Down
• Power Consumption : 620W @ 4 Ohms
