Output Power
Stereo
8Î per channel, stereo: 160W
4Î per channel, stereo: 320W
2Î per channel, stereo: 530W
Bridged Mono
8Î: 570W
4Î: 1050W
RMS
Stereo
8Î per channel, stereo: 110W
4Î per channel, stereo: 210W
2Î per channel, stereo: 380W
Bridged mono
8Î: 430W
4Î: 750W
System
Controls
Front: Power switch, Gain controls (channels A and B) DSP section rotary push-encoder, Buttons for Process, Setup, Up/Down, Exit
Indicators
Power: Amber backlit illuminated gain controls
Limit (per channel): 0dB, full scale
Signal (per channel): -24, -12, -6dB
Digital Signal Processing (DSP)
Display: LCD 128 x 32, amber backlit
Digital delay function (per channel): 0-300ms
Digital crossover function: 3 filter types, up to 48dB/octave
Digital EQ function (per channel): 8-band parametric, 2-band dynamic equalizer
Digital dynamics function (per channel): Zero attack limiter (peak)
Presets: 20 total presets, 19 user-definable
Connectors
Inputs: 2 x combo jacks
Input impedance: 10 kÎ unbalanced, 20 kÎ balanced
Outputs: 2 x locking-style professional speaker connectors
Output circuit type: Clase D
Distortion: <0.1%
Frequency response: 20Hz to 20kHz, +0 / -1dB
Damping factor: >155 @ 8Î
Signal-to-noise: >98dB
USB: Front-panel USB connector type B for remote control of DSP section
Circuit Protection
Cooling: Continuously variable speed fan, Back-to-front air flow
Amplifier protection: Thermal and DC protection, Stable into reactive or mismatched loads
Load protection: On/off muting, DC-fault power supply shutdown
Power
Power Supply: 120 V, 60Hz (T 6.3 A H 250V)
Power consumption@2Î: 150W
Power consumption@4Î: 70W
Mains connector: Standard IEC receptacle
- Home Theatre Systems / Club Sound Experience at Home
- Restaurants / Cafe / Gym " Sound System Set Up "
- DJ Gear
- Live Sound
- Lighting
- Commercial
- Studio
- Accessories
- Education Institution
- 100% Original Product Guarantee from DJ Pundits.
- COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
- Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
- The products you buy are sourced carefully for you at the lowest price
- Delivers 2 x 500W into 2Î; 2 x 300Ws into 4Î; 1000Ws into 4Î (bridge mode) and weighs less than 8lb. / 3.5kg
- Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup
- Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low-power consumption
- High-performance DSP and 24-bit/96kHz converters deliver ultimate signal integrity and extreme dynamic range
- DSP section features sophisticated delay, crossover (3 filter types, up to 48dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing, and lockable security settings
- Front panel LCD display enables setup and adjustment without PC
- Can be set up, controlled and monitored via front panel USB connector (Powerful remote software downloadable at vendor website)
- "Zero-Attack" limiters offer maximum output level with reliable overload protection
- Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4'' TRS combination input connectors for compatibility with any source
- Professional twist-lock speaker connectors for ultimate reliability
- Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show

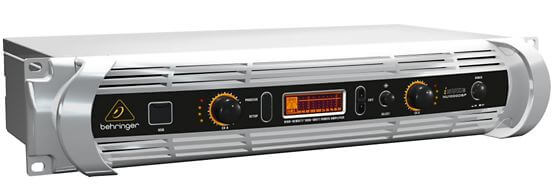

BEHRINGER INUKE NU1000DSP 2CH POWER AMPLIFIER
Description: Like the rest of the iNUKE Series power amplifiers, the NU1000DSP packs massive amounts of output power into an exceptionally lightweight, rackmountable package.
Warranty : 1 Year
Offer Price : 23,589.00
