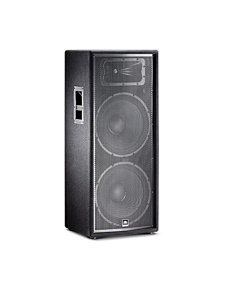

Power Rating500 W / 2000 W
Frequency Range (-10 dB)42 Hz - 18 kHz
Frequency Response (±3 dB)62 Hz - 13 kHz
Sensitivity (@1m)100 dB SPL (1w/1m)
Nominal Impedance4 ohms
Recommended Amplifier Power500 W to 1000 W into 4 ohms
Maximum SPL133 dB
Nominal Dispersion90º x 50º
Crossover Frequency2.2 kHz
Dimensions
(H x W x D)1092 mm x 464 mm x 426 mm
(43 in x 18.3 in x 16.8 in)
Weight42.6 kg (94 lb)
High Frequency DriverJBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
Low Frequency DriverJBL M115-8A x 2
Input ConnectorsNeutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel

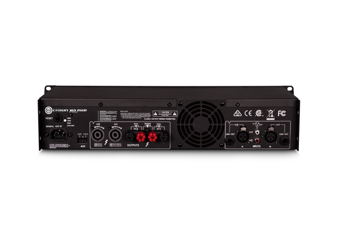

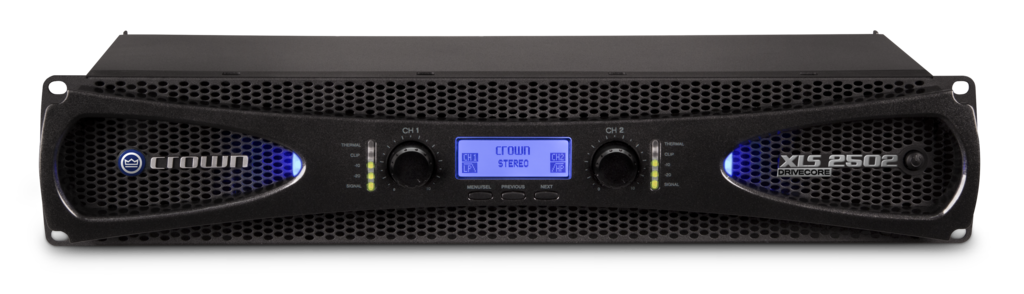

Amplifier-
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | >103dB (at .775Vrms, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz: > 85dB, At 20kHz: > 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm) |
| Weight | 10.8 lbs (4.9 kgs) |
